Introduction
The 555 timer is one of the most versatile and widely used integrated circuits in electronics. In this post, I’ll walk you through how to build a simple LED flasher circuit using the 555 timer, explain how it works, and help you understand the underlying principles. Whether you’re a beginner in electronics or looking to refresh your knowledge, this project offers a perfect hands-on introduction to timing circuits.
What is the function of this circuit?
This circuit is a 555 timer configured as an astable multivibrator, which creates a continuous oscillation without needing an external trigger. Specifically, it functions as an LED flasher.
The circuit repeatedly charges the 10μF capacitor (C1) through both resistors (R1 and R2), then discharges it through just R2. This creates the oscillating pattern seen in the waveforms.
The timing components (R1, R2, and C1) determine how fast the LED flashes. The output at the Output pin of the 555 timer (shown as the green square wave) drives the LED through the 330Ω current-limiting resistor (R3), causing it to turn on and off at regular intervals.

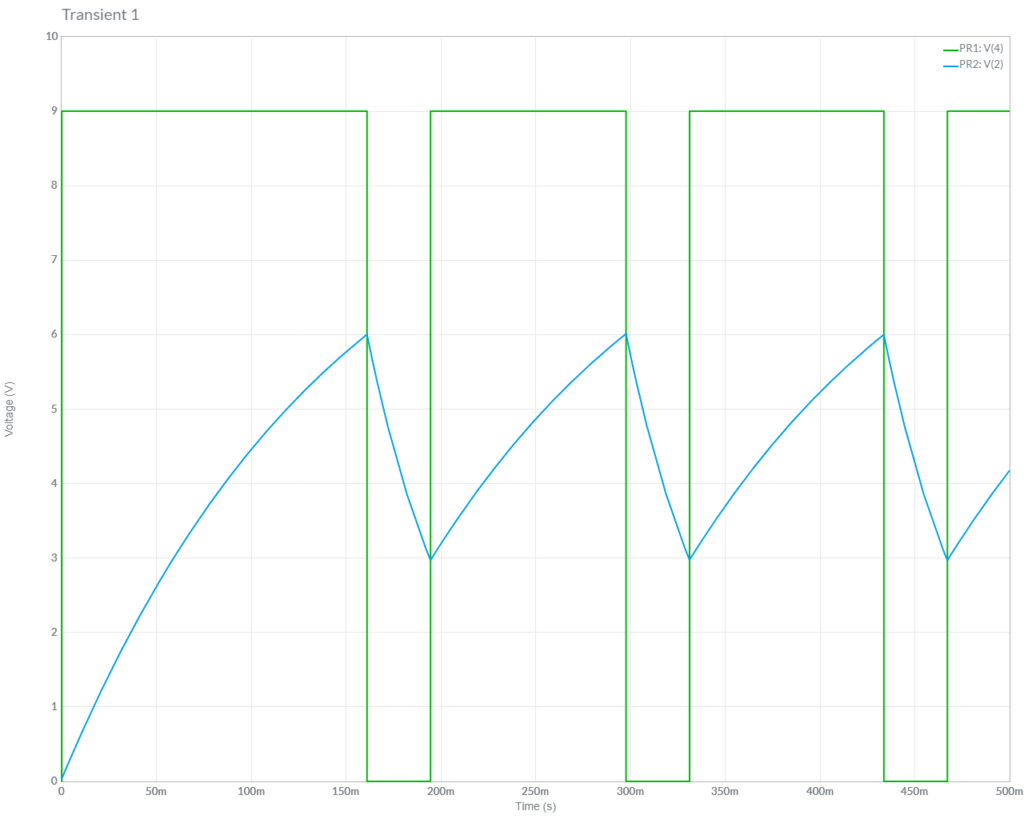

The blue sawtooth waveform shows the capacitor charging and discharging between approximately 1/3 and 2/3 of the supply voltage, which is how the 555 timer determines when to switch states.

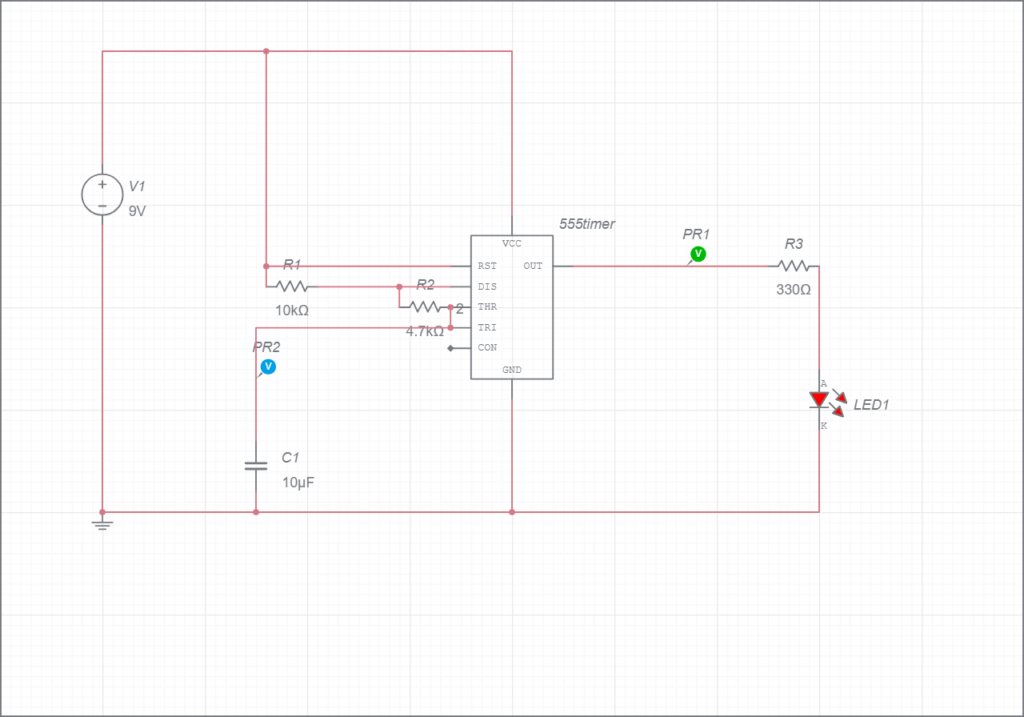

Circuit Diagram
How would you describe an astable multivibrator in simple terms?
An astable multivibrator is simply a circuit that turns things on and off repeatedly all by itself – like a light switch that flips up and down automatically without anyone touching it.
Think of it like this:
Imagine a ball rolling back and forth between two hills. When it rolls down one hill, it has enough momentum to climb partway up the other hill, then rolls back. This back-and-forth motion continues forever without needing anyone to push it.
In this circuit:
- The 555 timer chip is like the brain that controls this back-and-forth action
- The capacitor (C1) is like a small water tank that fills up and empties
- When the tank fills to a certain level, the 555 timer says “now empty it”
- When it empties to a certain level, the 555 timer says “now fill it”
- This filling and emptying happens over and over
- Each time the cycle repeats, the LED blinks
It’s basically an automatic light blinker, like the kind you might see on construction barriers or holiday decorations, but built using simple electronic parts.
What components are used in this circuit?
This circuit uses these basic components:
- 555 timer chip – This is the “brain” of the circuit that controls when the LED turns on and off
- LED – The light that blinks on and off
- Capacitor (10μF) – Acts like a tiny rechargeable battery that fills up and empties repeatedly
- Resistors (three of them):
- R1 (10,000 ohms or 10kΩ) – Controls how fast the capacitor charges
- R2 (4,700 ohms or 4.7kΩ) – Also helps control timing
- R3 (330 ohms) – Protects the LED from getting too much current and burning out
- 9-volt battery or power supply – Provides the electricity for the whole circuit
These simple parts work together to create the flashing light pattern. The resistors and capacitor control how fast the blinking happens – changing their values would make the LED blink faster or slower.
Could you explain the 555 timer chip and the function of each pin?
The 555 timer chip is a small electronic “brain” with 8 pins that control different functions. Here’s a simple explanation of what each pin does:
Ground:
- The negative connection point for the circuit
- Like the return path for electricity
Trigger:
- Starts the timing cycle when voltage drops low enough
- Connected to the capacitor in this circuit
Output:
- Where the signal comes out that turns the LED on and off
- Connected to the LED through resistor R3
Reset:
- Works like an emergency stop button
- Usually connected to positive voltage to keep it running
Control Voltage:
- Can adjust timing (usually not used in simple circuits)
Threshold:
- Watches the capacitor voltage and helps decide when to switch states
- Connected to the capacitor in this circuit
Discharge:
- Helps empty the capacitor when needed
- Connected to resistors R1 and R2
Power:
- Where the chip gets its power from (9 volts in this circuit)
In this blinking circuit, these pins work together like a team – some watch the capacitor voltage, some control when to change the output, and one sends the signal to make the LED blink.
Is programming required for the 555 timer?
No, you don’t need to code a 555 timer chip – that’s one of its best features!
The 555 timer is a ready-made chip that works right out of the box. It doesn’t need programming like microcontrollers (such as Arduino or Raspberry Pi) do. Instead, it works purely based on how you connect components to it.
Think of it like a simple kitchen appliance versus a computer:
- A toaster (like the 555) just needs to be plugged in and have the settings adjusted with dials
- A computer (like Arduino) needs software written for it before it can do anything useful
You control how the 555 timer behaves by:
- Choosing the right resistor values
- Picking the right capacitor size
- Connecting the components to the correct pins
The circuit automatically works once everything is properly connected and powered. This makes the 555 timer very popular for simple timing projects, especially for beginners who don’t want to learn programming.
Why is the Reset pin connected to VCC?
The Reset pin of the 555 timer is connected to VCC (the positive power supply) for a simple reason – to keep the timer running.
Think of the Reset pin like an on/off switch for the entire chip:
- When Reset is connected to positive voltage (VCC), the timer works normally
- When Reset is connected to ground (0V), the timer shuts down completely
By connecting Reset to VCC, we’re basically telling the 555 timer “stay on all the time” so it can keep blinking the LED.
If we left this pin disconnected or connected it to ground:
- The timer would stop working
- The LED would stay off
- The blinking would cease
In more advanced circuits, this Reset pin can be connected to other components to allow something else to turn the timer on and off. But for a simple blinking light, we just want it running continuously, so we connect Reset directly to the positive power supply.
Why is the Discharge pin connected to R1 (10kΩ) and then to VCC?
The Discharge pin is connected to resistors because this is how the 555 timer controls the charging and discharging of the capacitor to create the blinking effect.
Here’s what happens:
When the timer’s internal circuit turns the Discharge pin OFF:
- The capacitor charges through both R1 (10k) AND R2 (4.7k)
- This is like filling a water tank through a narrow pipe
When the timer’s internal circuit turns the Discharge pin ON:
- The capacitor discharges through ONLY R2 (4.7k)
- This is like emptying the water tank through a different pipe
The resistor values are chosen specifically to control:
- How fast the capacitor charges (affects how long the LED stays off)
- How fast the capacitor discharges (affects how long the LED stays on)
The 10k value for R1 was chosen to create a reasonable blinking speed. Using a larger resistor would make the LED blink more slowly, while a smaller resistor would make it blink faster.
This connection arrangement is what makes the circuit work as an oscillator without needing any external triggering.
Why is the Threshold pin connected to a 4.7k resistor and then to the Discharge pin instead of directly to VCC?
Imagine the 555 timer circuit as a bathtub with special automatic controls:
- The capacitor (C1) is like the bathtub that fills and empties
- The Threshold pin is like a water level sensor high up on the tub
- The Discharge pin is like a drain valve at the bottom
- The resistors control how fast water flows
Now, here’s what happens in a cycle:
FILLING PHASE:
- The bathtub (capacitor) starts filling with water (electrical charge)
- Water flows through two pipes (R1 and R2) connected in series, so it fills slowly
- The water level sensor (Threshold pin) is watching the water rise
DRAINING PHASE:
- When water reaches the high sensor (Threshold pin), it triggers the drain valve to open
- The drain valve (Discharge pin) opens, connecting to ground
- Water drains out through only one pipe (R2)
- The LED turns off while draining happens
WHY THIS CONNECTION MATTERS: If the water level sensor (Threshold pin) was connected directly to the water supply (VCC), it would always read “full” and never trigger the drain cycle. The tub would just keep trying to fill, and the blinking would never happen!
By connecting the sensor to the actual water in the tub (through R2), it can accurately detect when the tub is filled enough to trigger the drain cycle, creating the continuous fill-drain-fill cycle that makes the LED blink.
How does the circuit detect when the capacitor is 2/3 filled? What would happen if the Threshold pin were directly connected to VCC?
Inside the 555 timer chip is a clever measuring system:
- The chip contains three identical resistors connected in series between power and ground
- These resistors create precise voltage reference points at 1/3 and 2/3 of the supply voltage
- The chip has internal comparators (like electronic scales) that compare the capacitor voltage to these reference points
- When the capacitor voltage crosses the 2/3 point, one comparator triggers and switches the output
It’s like having a bathtub with a pre-marked line at exactly 2/3 full. When the water reaches this line, it automatically triggers the drain.
What If Threshold Connected Directly to VCC?
If the Threshold pin were connected directly to VCC:
- It would constantly see the full voltage (9V)
- This is much higher than the 2/3 reference (about 6V in a 9V circuit)
- The comparator would ALWAYS think the capacitor is “over-filled”
- The 555 would keep the discharge pin active, constantly draining the capacitor
- The capacitor would never charge up properly
- The LED would stay permanently OFF
It’s like connecting the water level sensor directly to your water supply pipe instead of putting it in the bathtub – it would always read “full” even when the tub is empty!
This is why the Threshold pin must be connected to the actual capacitor voltage to properly monitor the charging cycle.
Why is the Trigger pin connected to the Threshold pin?
In this circuit, the Trigger pin is connected to the Threshold pin because both need to monitor the same capacitor voltage to create continuous oscillation.
Here’s why this connection is important:
The Trigger pin’s job:
- Starts a new timing cycle when voltage drops below 1/3 of VCC (about 3V)
- Makes the output go HIGH and turns the LED ON
The Threshold pin’s job:
- Ends the timing cycle when voltage rises above 2/3 of VCC (about 6V)
- Makes the output go LOW and turns the LED OFF
By connecting both pins to the same capacitor:
- They both watch the same voltage rising and falling
- When the capacitor discharges below 1/3 VCC, Trigger activates and starts charging
- When the capacitor charges above 2/3 VCC, Threshold activates and starts discharging
- This creates an automatic cycle that repeats forever
Think of it like a ball rolling between two hills – when it rolls down to the bottom (1/3 VCC), it starts climbing up the other side, and when it reaches the top (2/3 VCC), it rolls back down again. Both pins simply watch different points of this same journey.
Why is the Trigger pin connected to the capacitor and then to ground?
The Trigger pin is connected to the capacitor and then to ground because this creates the complete path for the capacitor to charge and discharge.
Here’s why this connection is important:
The capacitor needs to be connected between a point in the circuit and ground:
- One side connects to the trigger/threshold pins
- The other side must connect to ground to complete the circuit
This ground connection is essential because:
- The capacitor needs a reference point (ground) to measure its voltage from
- Without the ground connection, the capacitor couldn’t charge or discharge
- It’s like having a bathtub with no bottom – the water would just fall through
When the circuit is running:
- The capacitor’s voltage is measured between the trigger pin and ground
- When this voltage falls below 1/3 of VCC, the trigger activates
- The capacitor then begins charging again
It’s similar to how a rain gauge works – you need both the collection container (capacitor) and a solid bottom (ground connection) to measure how much water has accumulated.
If the capacitor’s voltage falls, what supplies electricity to charge it when it’s connected to ground?
The capacitor isn’t only connected to ground – it has two ends:
- One end connects to the Trigger/Threshold pins and also to the resistors
- The other end connects to ground
The electricity to charge the capacitor comes from VCC (the 9V power supply), following this path:
- From VCC (9V positive power)
- Through resistor R1 (10k)
- Through resistor R2 (4.7k)
- Into the capacitor
- Out through the ground connection
Think of it like filling a water tank:
- The power supply (VCC) is like a water pump
- The resistors are like narrow pipes that control flow
- The capacitor is like a tank with two connections:
- An input pipe (connected to resistors)
- A drain pipe (connected to ground)
- The tank fills from the top, not from the bottom ground connection
Ground is just the reference point that completes the circuit – like the bottom of the tank that allows the measurement of water level.
Could you explain the entire process of how voltage flows through the circuit and what the Discharge, Threshold, and Trigger pins do?
The Complete Circuit Operation
Power Supply Path:
- Electricity flows from VCC (9V positive supply)
- Through R1 (10k) to the Discharge pin
- Then through R2 (4.7k) to the capacitor
- The capacitor’s other end connects to ground
The Three Key Pins:
- Discharge pin acts like a switch that can connect to ground
- Threshold pin watches for when voltage rises above 2/3 VCC (6V)
- Trigger pin watches for when voltage falls below 1/3 VCC (3V)
The Complete Cycle:
PHASE 1: CHARGING (LED ON)
- Output pin is HIGH (9V)
- Discharge pin is OFF (open switch)
- Capacitor charges through R1 and R2
- Voltage rises at the capacitor
- Both Threshold and Trigger pins monitor this rising voltage
PHASE 2: UPPER LIMIT REACHED
- When capacitor voltage reaches 2/3 VCC (6V)
- Threshold pin detects this and signals internally
- Output pin switches to LOW (0V)
- LED turns OFF
- Discharge pin turns ON (closes switch to ground)
PHASE 3: DISCHARGING (LED OFF)
- Output pin is LOW (0V)
- Discharge pin is ON (connecting to ground)
- Capacitor discharges through R2 and the Discharge pin to ground
- Voltage falls at the capacitor
- Both pins continue monitoring this falling voltage
PHASE 4: LOWER LIMIT REACHED
- When capacitor voltage falls below 1/3 VCC (3V)
- Trigger pin detects this and signals internally
- Output pin switches to HIGH (9V) again
- LED turns ON
- Discharge pin turns OFF (opens switch)
- Cycle repeats from Phase 1
This continuous cycle creates the blinking pattern, with the timing determined by how fast the capacitor charges and discharges through the resistors.
Why does the capacitor discharge through the Discharge pin and not directly through the ground connection?
The capacitor has two plates (sides):
- Negative plate: Always connected to ground (0V)
- Positive plate: Connected to the timing circuit (R2, Threshold, Trigger pins)
When discharging happens:
- The Discharge pin becomes an active path to ground (like a switch closing)
- Current flows FROM the positive plate of the capacitor
- THROUGH resistor R2
- INTO the Discharge pin
- THROUGH the internal connection to ground inside the 555 chip
The capacitor can’t discharge “straight through its ground connection” because:
- The negative plate is always at ground (0V)
- Only the positive plate has any voltage to discharge
- Current needs a complete path from positive to negative
- That path is provided by the Discharge pin
Think of it like a water tank with the bottom already at ground level. Water can only drain out through a pipe connected to the side of the tank, not through the bottom that’s already on the ground.
What controls the Output pin’s high and low states when it’s not directly connected to VCC?
The output pin is controlled by internal circuitry inside the 555 timer chip – that’s the beauty of integrated circuits!
Inside the 555 timer chip:
- There’s a built-in “flip-flop” circuit (like a toggle switch)
- This flip-flop has two states: ON and OFF
- It’s controlled by the signals from the Trigger and Threshold pins
The output pin is connected to internal power through transistors:
- When the flip-flop is ON: internal transistors connect the output to VCC (9V)
- When the flip-flop is OFF: internal transistors connect the output to ground (0V)
What makes the output switch:
- When the capacitor voltage falls below 1/3 VCC: Trigger pin activates the flip-flop, making output HIGH
- When the capacitor voltage rises above 2/3 VCC: Threshold pin deactivates the flip-flop, making output LOW
The chip gets its power from VCC and ground, which energizes all its internal components. The output pin simply reflects the state of this internal flip-flop circuit.
It’s like having a light switch inside a box – you don’t see the wiring, but when you flip the switch, the light turns on or off.
Why is the LED’s anode connected to the Output pin rather than its cathode, and why is a resistor added between them?
The LED connection follows the basic rules of how LEDs work:
Why the anode connects to the output:
- LEDs only allow electricity to flow in one direction (from anode to cathode)
- Current needs to flow FROM the output pin THROUGH the LED TO ground
- When the output is HIGH (9V), current flows and lights the LED
- When the output is LOW (0V), no current flows and the LED turns off
Why there’s a resistor (R3, 330 ohms) between them:
- LEDs need current limitation or they’ll burn out instantly!
- Without a resistor, an LED would try to draw too much current and destroy itself
- The resistor acts like a “water flow restrictor” that limits current to a safe level
- 330 ohms is a common value that provides enough current to light the LED brightly without damaging it
If we connected the cathode to the output and the anode to VCC, the LED would be on when the output is LOW and off when it’s HIGH – the opposite of what we want. And without the resistor, the LED would quickly burn out.
Could you explain the graph showing the output voltage and capacitor voltage?
Looking at the graph:
The Green Square Wave (Output Voltage):
- This shows the output voltage from the Output pin of the 555 timer
- It switches between approximately 0V and 9V
- When HIGH (9V): The LED is ON
- When LOW (0V): The LED is OFF
- This square wave pattern creates the blinking effect of the LED
The Blue Sawtooth Wave (Capacitor Voltage):
- This shows the voltage across the capacitor
- It gradually rises (charging) and quickly falls (discharging)
- It oscillates between about 3V (1/3 of VCC) and 6V (2/3 of VCC)
- When it reaches the upper threshold (6V), the output goes LOW and discharging begins
- When it falls to the lower threshold (3V), the output goes HIGH and charging begins
How They Relate:
- When the blue line (capacitor voltage) is rising, the green line (output) is HIGH, and the LED is ON
- When the blue line quickly drops, the green line goes LOW, and the LED is OFF
- The time scale at the bottom (in milliseconds) shows this happening roughly every 150ms
This creates a blinking pattern where the LED is on for longer than it’s off (due to the charging time being longer than discharging).
Is the charging time longer than the discharging time?
Yes, exactly! The charging time is longer than the discharging time, and this is by design in the 555 timer circuit.
Looking at the graph:
- The blue line rises slowly (charging) and falls quickly (discharging)
- This means the LED stays ON longer than it stays OFF
This happens because:
During charging:
- The capacitor charges through BOTH resistors (R1 + R2 = 14,700 ohms total)
- This higher resistance makes charging slower
- This is the “ON time” for the LED
During discharging:
- The capacitor discharges through ONLY R2 (4,700 ohms)
- This lower resistance makes discharging faster
- This is the “OFF time” for the LED
You can actually calculate these times:
- ON time ≈ 0.693 × (R1 + R2) × C
- OFF time ≈ 0.693 × R2 × C
This is why the LED spends more time ON than OFF in this circuit. If you wanted equal ON/OFF times, you would need to modify the circuit design.
How were the component values (10kΩ, 10μF, 4.7kΩ, 330Ω, and 9V) determined?
These component values were chosen based on practical considerations and calculations for the desired blinking effect:
9V Power Supply:
- Standard battery voltage
- Provides enough power for the circuit while being safe and commonly available
Timing Components (R1, R2, C1):
- The blinking frequency is calculated using these formulas:
- ON time = 0.693 × (R1 + R2) × C1
- OFF time = 0.693 × R2 × C1
- Total period = ON time + OFF time
- Frequency = 1/Total period
With R1 = 10kΩ, R2 = 4.7kΩ, and C1 = 10μF:
- ON time ≈ 0.693 × 14,700 × 0.00001 = 0.102 seconds
- OFF time ≈ 0.693 × 4,700 × 0.00001 = 0.033 seconds
- Frequency ≈ 7.4 Hz (blinks per second)
These values create a visible blinking rate that’s not too fast or too slow for human perception.
LED Current-Limiting Resistor (R3 = 330Ω):
- This value protects the LED by limiting current:
- Most LEDs need about 20mA of current
- Using Ohm’s Law: R = (Supply voltage – LED voltage) / Current
- R = (9V – 2V) / 0.02A = 350Ω
- 330Ω is a standard resistor value close to the calculated value
These values balance creating a visible effect, using common components, ensuring safe operation, and having reasonable battery life.
Why was the circuit simulated with a transient sweep rather than other types of analysis?
Transient analysis was chosen because this circuit is all about timing and changes over time – which is exactly what transient simulation measures.
Here’s why transient was the right choice versus other options:
Transient Sweep (what we used):
- Shows how signals change over time
- Perfect for circuits with oscillation, like our blinking LED
- Reveals the charging/discharging cycles of the capacitor
- Demonstrates the relationship between capacitor voltage and output
DC Sweep (not useful here):
- Only shows steady-state responses to different DC voltages
- Can’t capture oscillating behavior or timing
- Our circuit doesn’t have a fixed “DC operating point” – it’s always changing
AC Sweep (not useful here):
- Shows frequency response to sine wave inputs
- Our circuit generates its own waveform, not responding to AC input
- Wouldn’t show the time-based blinking pattern
DC Operating Point (not useful here):
- Only provides a snapshot of voltages at one moment
- Can’t show oscillation or timing behavior
The 555 timer is a timing circuit that produces changing voltages over time – transient analysis is the only simulation type that can properly show how it functions.
For the transient analysis, why was the start time set to 0 and the end time to 0.5 seconds?
The transient simulation runs from 0 to 0.5 seconds because this timeframe perfectly captures multiple cycles of the LED blinking.
Looking at the component values (R1 = 10kΩ, R2 = 4.7kΩ, C1 = 10μF), we can calculate:
- Each complete cycle takes about 0.135 seconds
- A 0.5 second simulation shows approximately 3-4 full cycles
This time range is ideal because:
It shows enough cycles to confirm the repeating pattern:
- You can clearly see the pattern repeats reliably
- It provides good visual detail
- You can see the capacitor charging (slow rise) and discharging (quick fall)
- The on/off pattern of the LED is clearly visible
It’s practical for simulation:
- Not too short (which wouldn’t show the repeating nature)
- Not too long (which would compress the display and waste processing time)
On the graph, the time is shown in milliseconds (with “m” suffix), so 500m = 0.5 seconds.
Conclusion
The 555 timer LED flasher circuit demonstrates the elegant simplicity of analog electronics. With just a handful of basic components, we can create a reliable, self-running oscillator that has practical applications in countless projects. Understanding how this circuit works provides a solid foundation for more complex electronic designs while requiring no programming knowledge. Whether you’re a beginner just starting out or an experienced hobbyist, this classic circuit remains a valuable addition to your electronics repertoire.
Note:I used AI assistance in drafting and refining the explanations in this post to ensure technical accuracy and clarity.
